In construction, machinery manufacturing, furniture production, and various structural applications, square steel pipes have become one of the most widely used hollow steel products due to their high strength, excellent stability, ease of processing, and uniform appearance.

1.What Are Square Steel Tubes?

Square steel tubes are hollow steel products with a square cross-section. The core production processes include welded (formed by bending and welding steel coils) and seamless (formed through single-piece rolling). Both processes ensure excellent structural performance and cater to the needs of different applications.

Key Features:

Structurally stable with high load-bearing capacity, capable of withstanding certain longitudinal pressures and lateral tensile forces;

Neat appearance and standardized dimensions, making them easy to cut, join, and install efficiently;

Surfaces can be galvanized, spray-coated, or treated for corrosion resistance, extending service life and making them suitable for complex environments such as outdoor and humid conditions;

Widely applicable across multiple sectors including construction, machinery, furniture, and agriculture, offering high versatility.

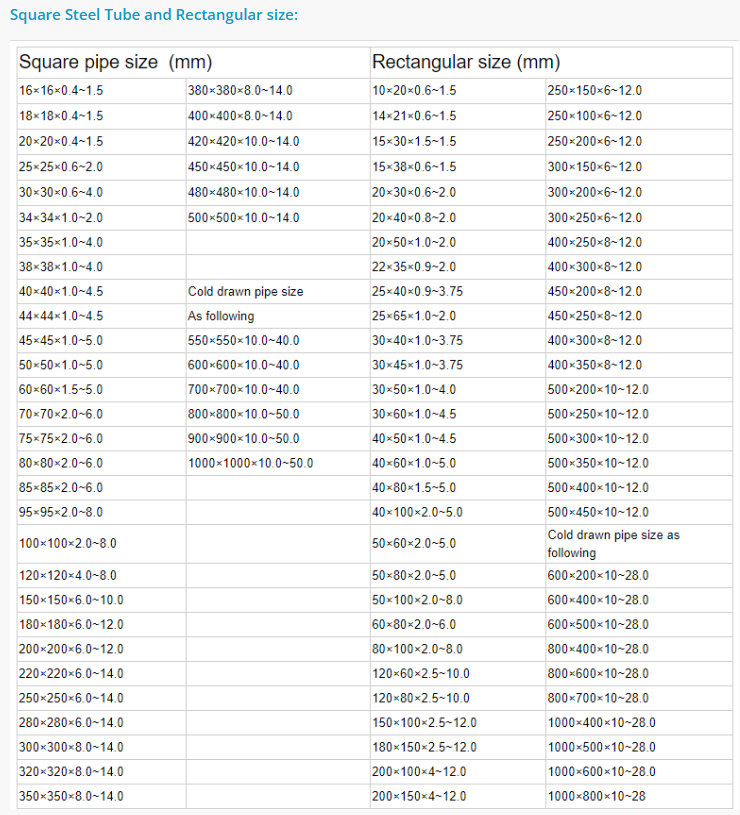

2.Common Specifications and Dimensions of Square Steel Tubes

Square steel tube specifications are uniformly denoted as “side length × side length × wall thickness” (unit: mm), for example, 50×50×2.0 mm, indicating a square cross-section with a side length of 50 mm and a wall thickness of 2.0 mm. Below are the most commonly used specifications in the market as of 2026, covering small, medium, and large sizes to meet various load-bearing requirements:

Side Length (mm)	Common Wall Thickness (mm)	Recommended Applications
10×10	0.5 – 1.5	Small-scale decoration, precision mechanical components
20×20	0.8 – 2.0	Lightweight decoration, furniture frames, small brackets
30×30	1.0 – 3.0	Furniture structures, small equipment brackets, guardrails
40×40	1.2 – 4.0	Medium-duty brackets, agricultural greenhouses, simple steel structures
50×50	1.5 – 5.0	Construction scaffolding, machine bases, shelving uprights
60×60	2.0 – 6.0	Medium-duty steel structures, equipment frames, guardrail posts
80×80	2.5 – 8.0	Heavy-duty supports, building beams, large equipment bases
100×100	3.0 – 10.0	Building main structures, large steel structures, heavy-duty equipment supports
150×150	4.0 – 12.0	Large building columns, heavy-duty steel structure projects
200×200	5.0 – 16.0	Large-scale project structural frames, high-load-bearing columns

3.Square Steel Pipe Length Specifications

Square steel pipes are manufactured in accordance with industry standards and are also available for customization to meet the installation requirements of various projects. Specific specifications are as follows:

Standard Length: 6 meters (most common in the market, suitable for most construction and mechanical applications, convenient for transportation and cutting);

Fixed-Length: 3 meters, 9 meters, 12 meters (suitable for large-scale projects and long-span supports, reducing the number of joints);

Custom Lengths: Custom lengths available upon request (commonly used for export orders; lengths can be adjusted to meet container loading requirements, reducing transportation costs).

Note: When purchasing for export trade, prioritize 6-meter or 12-meter lengths, as they better align with container loading standards, thereby reducing transportation losses and costs.

4.Comparison of International Standards

Different countries and regions adopt varying standards for square steel tubes. When purchasing (especially for import/export operations), it is essential to clarify the applicable standards to avoid situations where dimensions or materials do not match, rendering the product unusable. The comparison of mainstream international standards for 2026 is as follows:

Chinese Standard: GB/T 6728-2017 “Cold-formed Hollow Structural Sections” (the preferred choice for domestic construction and machinery applications, covering most common specifications);

U.S. Standard: ASTM A500 (cold-formed hollow structural carbon steel tubes, suitable for procurement in the U.S. and North America), ASTM A36 (general-purpose structural steel, suitable for light- to medium-duty load-bearing applications);

European Standard: EN 10219-2006 “Cold-formed welded hollow sections of non-alloy and fine-grained structural steels” (Applicable to Europe, with higher requirements for material purity and dimensional accuracy);

International Generic Name: SHS (Square Hollow Section), a common generic term for square hollow sections in international procurement, facilitating cross-regional communication.

5.How to Select the Dimensions of Square Steel Tubes?

The key to selection is “matching requirements.” This involves considering three critical factors: load-bearing capacity, application scenarios, and corrosion protection requirements. This approach helps avoid cost wastage caused by oversized specifications or compromises to structural safety due to undersized ones. Specific recommendations are as follows:

A.Select Based on Load-Bearing Requirements

Heavy-duty structures (e.g., building columns, heavy equipment supports): We recommend selecting specifications of ≥80×80×3.0 mm, with a wall thickness of 4.0 mm or greater to ensure load-bearing stability;

Light-duty structures (e.g., decorative frames, small brackets): Specifications such as 20×20, 30×30, or 40×40 are sufficient, with a wall thickness of 1.0–2.0 mm to balance portability and practicality.

B.Select by Application

Building structures (steel-frame factories, building supports): Prioritize large-dimension, thick-walled specifications (e.g., 100×100 or larger) to meet building safety standards;

Furniture and decor (tables, chairs, shelving, display cases): Choose small-dimension, thin-walled specifications (e.g., 20×20–60×60) for an aesthetically pleasing appearance and ease of fabrication;

Mechanical Equipment (Equipment Frames, Bases): Choose medium-sized specifications (e.g., 40×40–80×80) to balance load-bearing capacity and flexibility.

C.Selection Based on Corrosion Protection Requirements

Outdoor Use (Railings, Greenhouses, Outdoor Supports): Prioritize galvanized square steel tubes; the galvanized coating effectively blocks air and moisture, preventing rust and extending service life;

Indoor use (furniture, indoor supports): Black square tubes (untreated) or powder-coated square tubes may be selected to balance cost and aesthetics.

6.Common Application Areas

The application scenarios for square steel tubes continue to expand and currently cover a wide range of industries. The core application areas are as follows:

Construction: Steel structure workshops, building supports, balcony railings, stair handrails, building columns, etc.;

Machinery Manufacturing: Equipment frames, machine bases, conveyor pipes, agricultural machinery parts, etc.;

Furniture Manufacturing: Table and chair frames, shelving, display cabinets, wardrobe frames, etc.;

Agriculture: Greenhouse frames, agricultural machinery supports, livestock fencing, etc.;

Other Fields: Municipal guardrails, billboard supports, container accessories, fitness equipment, etc.

7.Practical Recommendations for Purchasing Square Steel Tubes

Clarify Key Parameters: Confirm the side length, wall thickness, and length of the square steel tubes in advance to avoid misdelivery or omissions caused by ambiguous specifications;

Confirm Applicable Standards: Based on the application scenario (domestic/export), specify the corresponding standards such as GB, ASTM, or EN to prevent discrepancies in material grade or dimensions;

Inspect Surface Treatment: For outdoor use, verify the thickness of the galvanized coating; for indoor use, select black steel or spray-coated options as needed to ensure compliance with corrosion protection requirements;

Request Material Test Certificates: Ask suppliers to provide Material Test Certificates (MTC) to verify steel grade and chemical composition, ensuring product quality;

Evaluate Supplier Capabilities: Prioritize manufacturers with stable production capacity, international certifications, and export experience to avoid delivery delays and substandard quality.

8.FAQ

A.What is the difference between square steel tubes and rectangular steel tubes?

The key difference lies in the cross-sectional shape: square steel tubes have a square cross-section with equal side lengths, providing uniform load-bearing capacity; rectangular steel tubes have a rectangular cross-section with different lengths for the long and short sides, with load-bearing capacity concentrated on the long sides, making them suitable for different structural load requirements.

B.What are the most commonly used square steel tube dimensions in 2026?

The most mainstream and widely used specifications on the market are: 40×40, 50×50, 60×60, and 100×100, covering light-duty, medium-duty, and heavy-duty applications. These should be your primary reference when purchasing.

C.Can square steel tubes be customized in size?

Yes, most manufacturers support customization of side length, wall thickness, and length. This is especially true for export orders, which can be adjusted according to customer requirements to meet the needs of specific applications.

D.Are galvanized square steel tubes really more durable?

Yes. The galvanized coating on the surface of galvanized square steel tubes forms a protective layer that effectively blocks corrosion from air, moisture, and acidic or alkaline substances. Compared to untreated black square tubes, their service life can be extended by 3 to 5 times, making them particularly suitable for outdoor and humid environments.

E.What is the difference between welded and seamless square steel tubes?

Welded square steel tubes are formed by welding steel strips together; they are lower in cost and suitable for most standard applications. Seamless square steel tubes are formed through a single-piece rolling process, resulting in no welded seams; they offer higher strength and better sealing properties, making them suitable for high-pressure, heavy-load, and high-precision applications, though they are relatively more expensive.

Summary

The selection of square steel tube specifications directly impacts structural safety, performance, and procurement costs. When procuring or selecting products in 2026, it is essential to focus on three key factors: dimensional compatibility, compliance with standards, and suitability for the application. If you are seeking a supplier of high-quality square steel tubes, please feel free to contact us at any time.
