Selection and Maintenance of Galvanized Steel Sheets: A Practical Guide for Industrial Applications
In the fast-paced environments of industrial production and construction, choosing the right materials directly determines whether projects can proceed smoothly and costs remain manageable. Galvanized steel sheets, renowned for their superior corrosion resistance and structural stability, have become indispensable core materials across multiple industries including construction, manufacturing, automotive, and agriculture. Whether erecting warehouse facilities, producing automotive components, or fabricating agricultural equipment, mastering the selection techniques and maintenance methods for galvanized steel sheets ensures compliance with industry safety standards while minimizing downtime losses and maintenance costs.

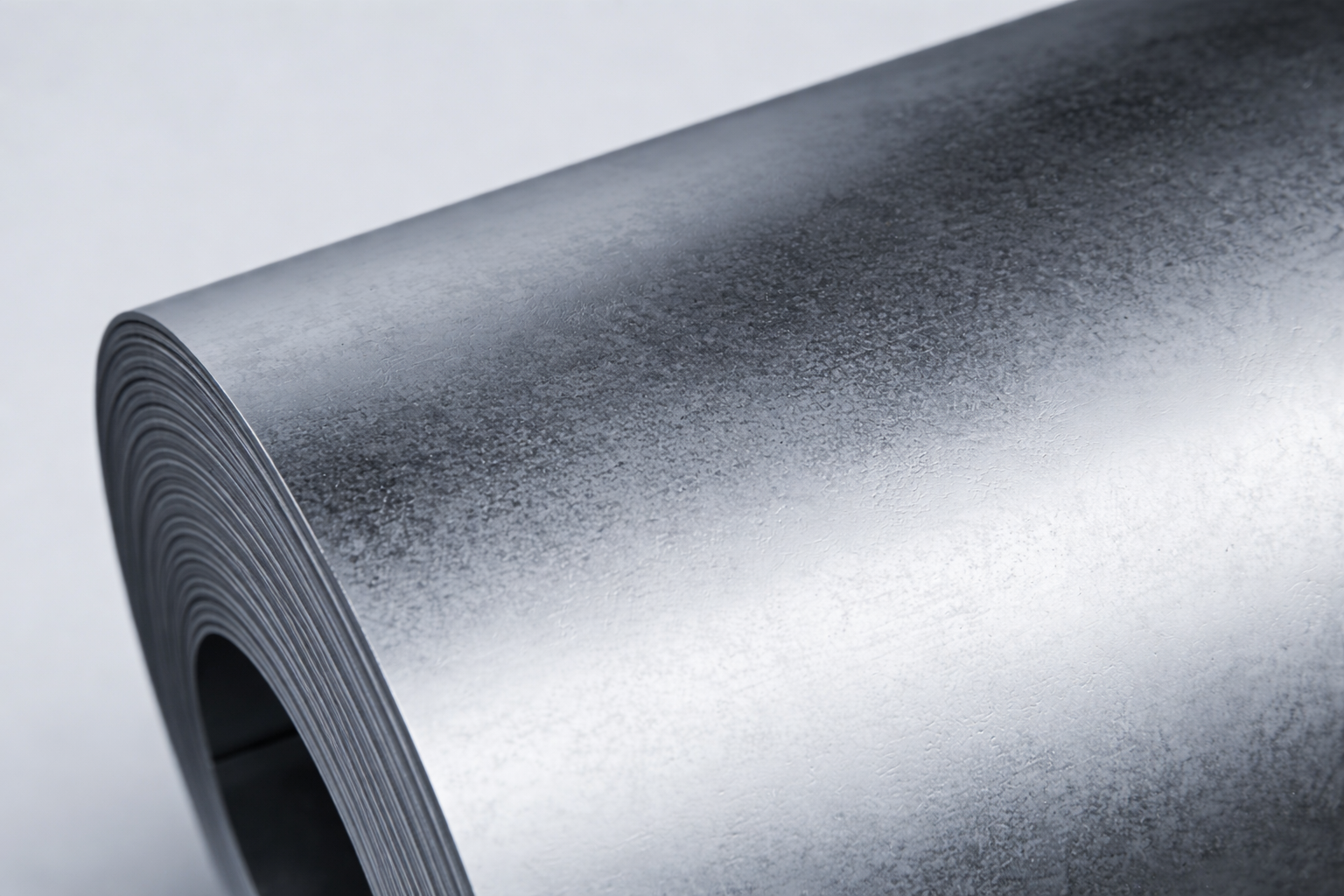

Galvanized Steel Coil
Table of Contents
1.What Are Galvanized Steel Sheets?
2.Industrial Application Advantages of Galvanized Steel Sheets
3.Types of Galvanized Steel Sheets: Precisely Matching Your Requirements
4.Core Parameters for Galvanized Steel Sheet Selection
5.Relevant Industrial Application Scenarios for Galvanized Steel Sheets
6.Maintenance and Safety for Extended Service Life
Conclusion: Elevate Your Project Quality with Premium Galvanized Steel Sheets
1. What is Galvanized Steel Sheet?
Galvanized steel sheet is a type of steel plate made from carbon steel or low-alloy steel as the base material, with a zinc coating applied to its surface through hot-dip galvanizing or electroplating processes.
This zinc layer not only isolates the steel from air and moisture but also provides “sacrificial anode protection” when the surface is damaged. The zinc corrodes first, effectively shielding the underlying steel from rust.
Structurally, galvanized steel sheets consist primarily of:
Carbon steel substrate: Provides strength and load-bearing capacity
Zinc coating (5–120μm): Delivers long-term corrosion protection
This composition grants galvanized steel sheets distinct advantages in outdoor and humid environments.

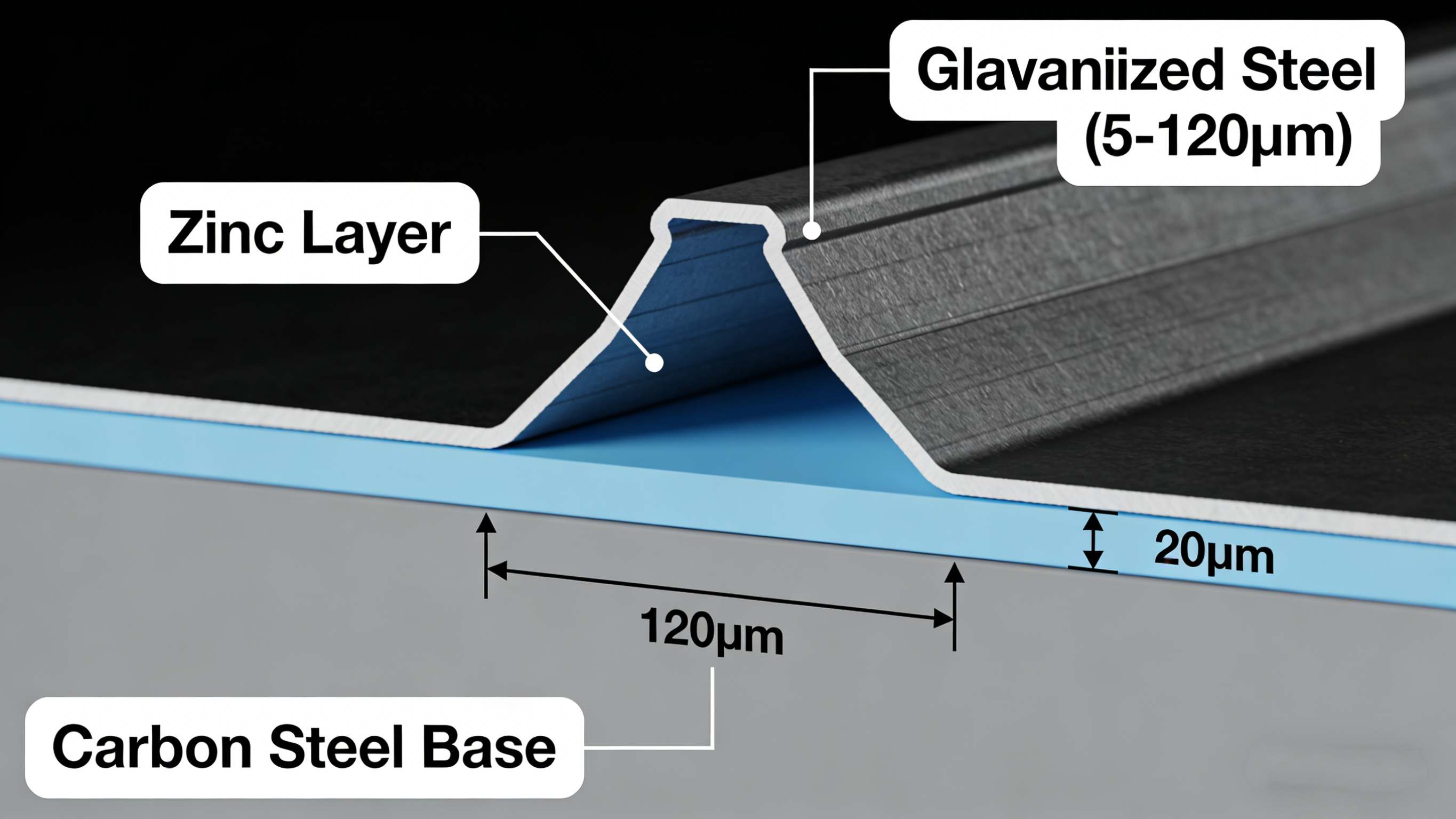

Cross-sectional diagram of galvanized steel sheet structure
2. Industrial Application Advantages of Galvanized Steel Sheets
Compared to ordinary cold-rolled or hot-rolled steel sheets, galvanized steel sheets offer several irreplaceable advantages in practical applications:
Superior Corrosion Resistance
The protective barrier formed by the zinc coating effectively isolates the steel from air and moisture, preventing rust at its source. In outdoor or high-humidity settings, galvanized steel sheets can last 20–50 years—5–10 times longer than standard uncoated steel. This exceptional corrosion resistance drastically reduces the need for frequent replacements, significantly lowering long-term maintenance costs.

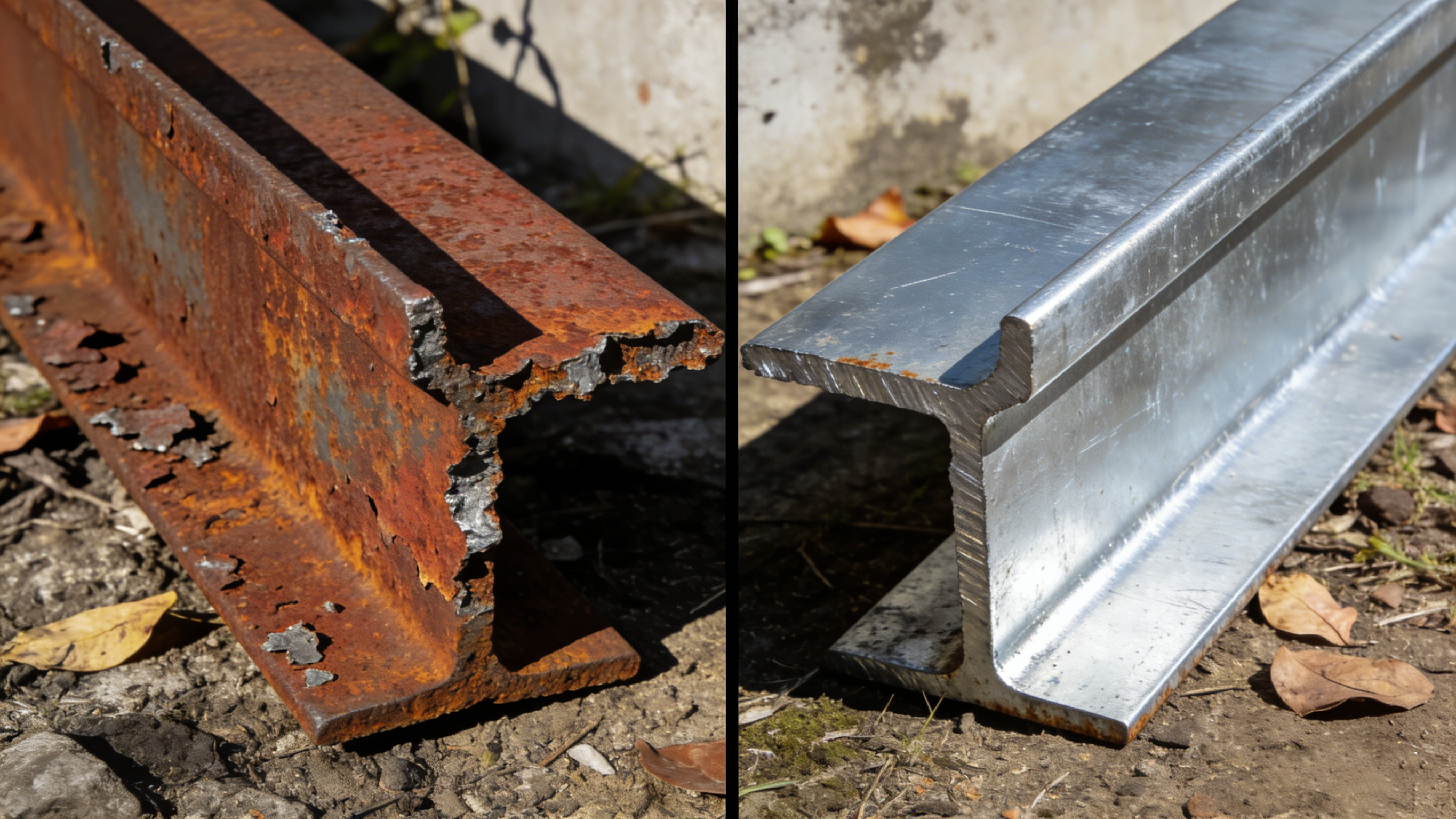

Comparison of galvanized and ungalvanized
Outstanding Long-Term Cost-Effectiveness
Although the initial purchase cost of galvanized steel sheets is higher than that of ordinary steel sheets, their extended service life and minimal maintenance requirements make their total life-cycle cost more advantageous. Compared to stainless steel, galvanized steel sheets offer lower costs while ensuring rust resistance, making them an ideal choice for large-scale engineering projects.
Versatility and Adaptability
Galvanized steel sheets readily accommodate cutting, bending, welding, and stamping processes, allowing custom shaping for diverse applications—from automotive body components to agricultural machinery and electrical control cabinets. Additionally, they support surface treatments like painting and powder coating, balancing functionality with aesthetic appeal.
Consistent Surface Quality
Electro galvanized or color-coated galvanized steel sheets feature smooth, aesthetically pleasing surfaces, making them suitable for applications with visual requirements.

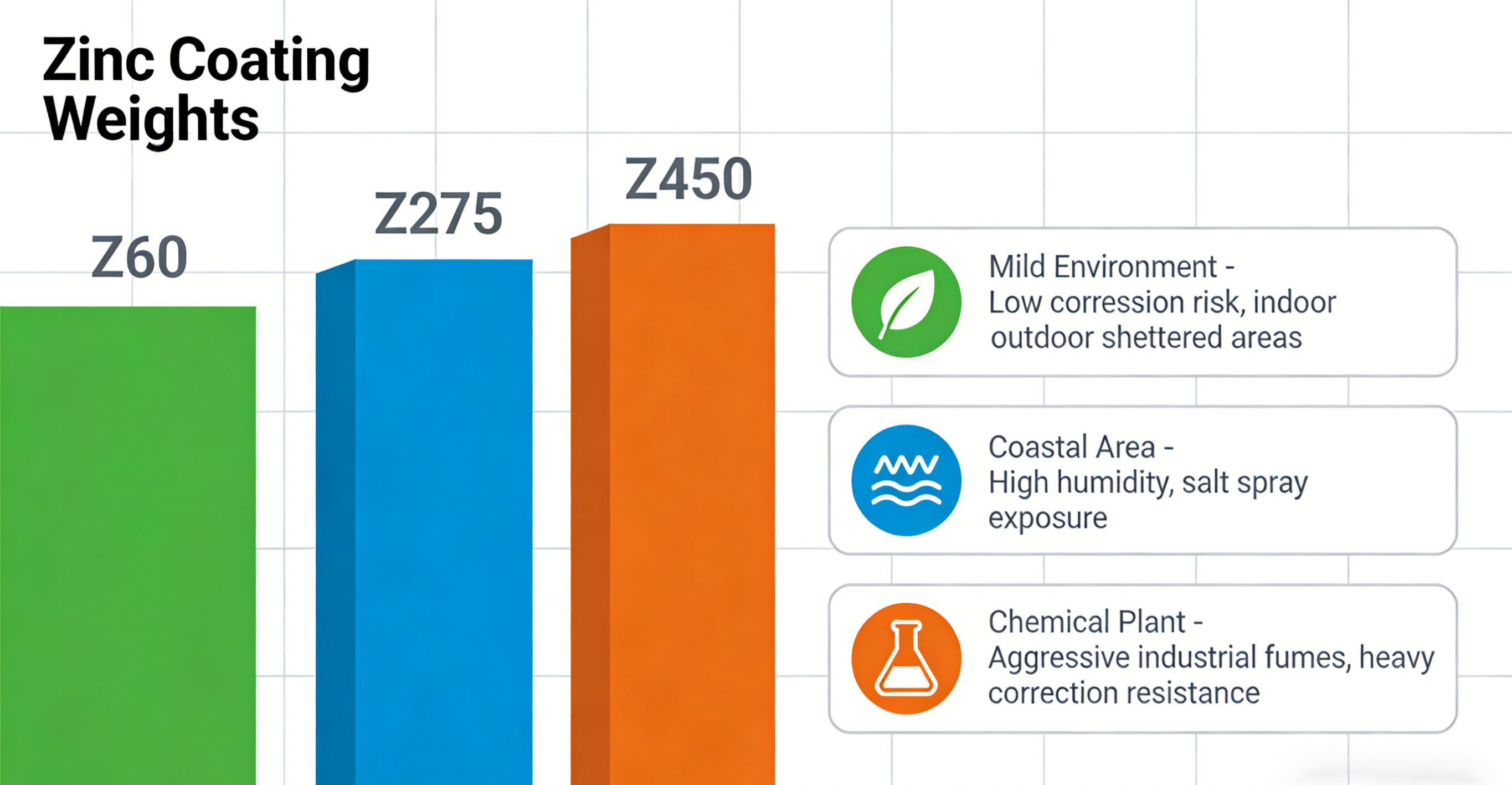

Advantages of galvanized steel
3. Types of Galvanized Steel Sheets: Precisely Match Your Needs
Selecting galvanized steel sheets requires comprehensive consideration of application scenarios, environmental conditions, and performance expectations. Below is a detailed analysis of common types to help you make precise selections:
Hot-Dip Galvanized Steel
Thick zinc coating (typically 40–120μm)
Highest corrosion resistance
Suitable for outdoor structures, construction projects, guardrails, and steel components
Electro-Galvanized Steel
Thin, uniform zinc coating (5–30μm)
Smooth surface with high dimensional accuracy
Commonly used for appliance housings, automotive components, precision machined parts
Pr-painted Galvanized Steel
Adds a coating over the galvanized layer
Combines corrosion resistance with decorative appeal
Widely used for roofing panels, wall panels, home decoration, and industrial enclosure systems

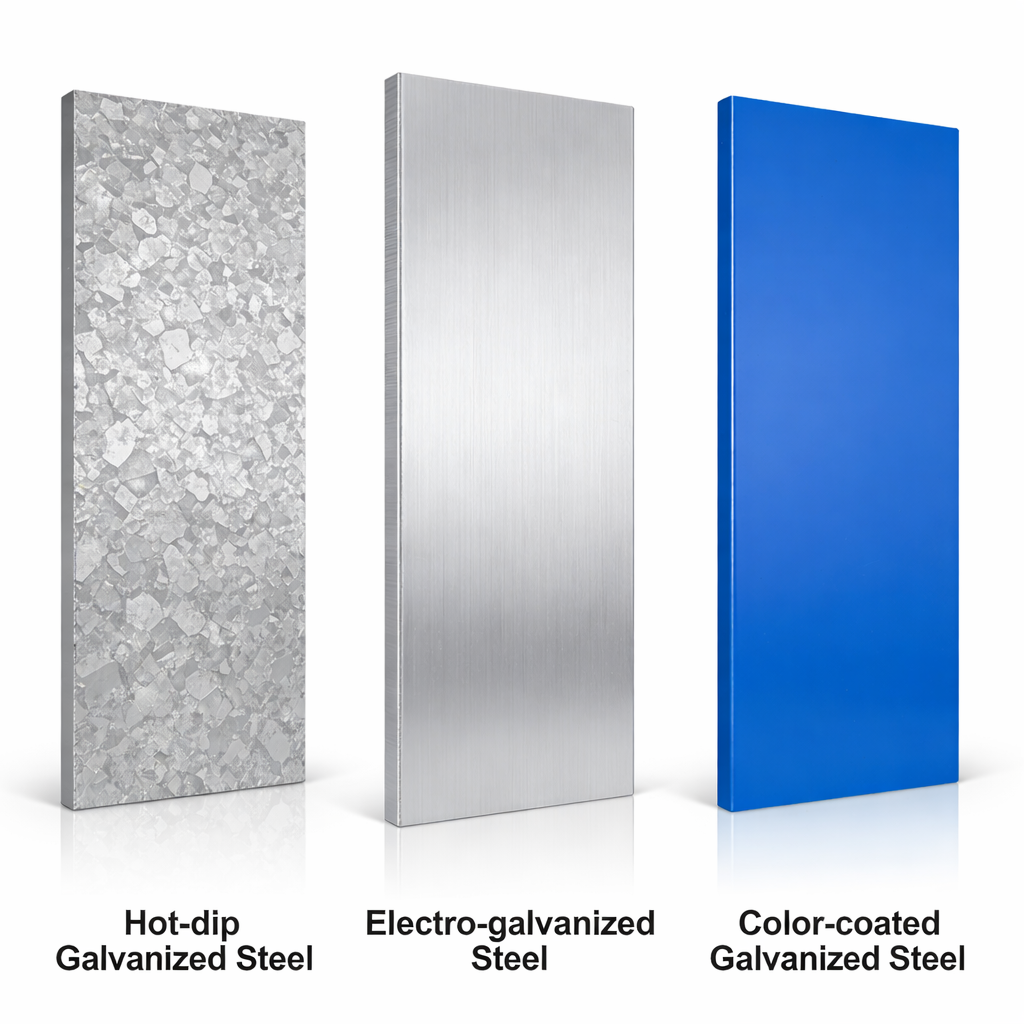

GalvanizedSteel
4. Key Parameters for Selecting Galvanized Steel Sheets
In actual procurement, the following parameters directly determine whether galvanized steel sheets are suitable for your project:
Zinc coating thickness (g/m² or μm)
Zinc coating weight (unit: g/m², denoted as Z) directly determines corrosion resistance. Mild environments (indoor storage, dry climates) require Z60-Z120; harsh environments (coastal, chemical corrosion) recommend Z275-Z450.
Base Steel Grade
Select appropriate steel grades based on strength requirements:
Low-carbon steel (e.g., ASTM A36, Q235): Suitable for general applications like roofing, fencing, and supports.
High-Strength Low-Alloy Steel (HSLA, e.g., ASTM A709, Q355): Offers higher tensile strength and enhanced durability, suitable for load-bearing structures like building frames and bridges.
Plate Thickness and Width
Steel plate thickness ranges from 0.3mm to 12mm, directly impacting structural strength and load-bearing capacity:
Thin plates (0.3–1.2 mm): Used for cladding panels, appliance housings, automotive components, etc.
Thick plates (1.5–12 mm): Used for structural members, heavy machinery components, etc.
Surface Finish
Surface smoothness affects appearance and functional suitability:
Standard zinc bloom: Natural texture formed during hot-dip galvanizing, suitable for structural components with minimal aesthetic requirements.
Fine zinc flowers: Achieved through controlled cooling processes, resulting in smoother surfaces suitable for pr-painting or exposed applications;
Bright surface: Common in electro galvanized steel sheets, featuring a flat, lustrous finish ideal for decorative or precision components.
5. Industrial Applications of Galvanized Steel Sheets
Owing to its comprehensive properties, galvanized steel sheets find extensive use across multiple industries:
Construction: Roofing panels, wall panels, steel structures, purl-ins
Manufacturing: Equipment enclosures, brackets, pallets
Transportation: Automotive components, shipping containers
Home Appliances: Refrigerator, washing machine, and air conditioner housings
Agriculture & Energy: Greenhouse structures, solar panel mounting systems
6. Maintenance and Safety for Extended Service Life
Scientific maintenance is crucial for prolonging the service life and ensuring the safe use of galvanized steel sheets.
Avoid prolonged damp storage to prevent white rust formation
Maintain ventilation and dryness in storage environments
Apply rust-proof touch-up coatings to cut edges or welds after processing
Select appropriate zinc coatings or color-coated products based on outdoor environmental conditions
Maintenance
