Understanding Steel Pipe Specifications: Size, Grade, Standard and Application
Steel pipes are essential components across industries ranging from construction and oil & gas to water transportation and manufacturing. However, choosing the right steel pipe requires more than simply selecting the correct diameter. Buyers, engineers, and procurement professionals must understand steel pipe specifications, including size, grade, manufacturing standards, and intended applications.
In this guide, we’ll explain the key factors that define steel pipe specifications and help you select the right product for your project.
What Are Steel Pipe Specifications?
Steel pipe specifications refer to the technical characteristics that determine a pipe’s dimensions, material properties, manufacturing process, testing requirements, and performance. These specifications ensure compatibility, safety, and reliability in different operating conditions.
The primary elements include:
- Pipe Size
- Wall Thickness
- Material Grade
- Manufacturing Standard
- Surface Treatment
- End Type
- Pressure Rating
- Application
Understanding each of these elements is essential before purchasing steel pipes.
Steel Pipe Size Explained
One of the most important specifications is pipe size.
Steel pipe size generally consists of three measurements:
1. Outside Diameter (OD)
The outside diameter remains constant for pipes with the same nominal size, regardless of wall thickness. OD is commonly measured in inches or millimeters.
For example:
| Nominal Pipe Size (NPS) | Outside Diameter |
|---|---|
| 2″ | 60.3 mm |
| 4″ | 114.3 mm |
| 6″ | 168.3 mm |
2. Wall Thickness
Wall thickness determines the pipe’s pressure capacity and strength.
Common wall thickness designations include:
- Schedule 10
- Schedule 20
- Schedule 40
- Schedule 80
- Schedule 160
- XXS (Double Extra Strong)
Generally, a higher schedule number means a thicker wall and greater pressure resistance.
3. Pipe Length
Steel pipes are supplied in various lengths:
- Random Length (5–12 m)
- Single Random
- Double Random
- Fixed Length (6 m, 12 m, or customized)
Longer pipes reduce the number of welded joints during installation.
Understanding Steel Pipe Grades
The grade indicates the chemical composition and mechanical properties of the steel.
Different grades are designed for different operating environments.
Carbon Steel Grades
Popular carbon steel grades include:
- ASTM A53 Grade A
- ASTM A53 Grade B
- ASTM A106 Grade B
- ASTM A106 Grade C
- API 5L Grade B
- API 5L X42
- API 5L X52
- API 5L X60
- API 5L X65
- API 5L X70
Higher grades generally offer:
- Higher yield strength
- Better tensile strength
- Improved pressure resistance
Stainless Steel Grades
Common stainless steel pipe grades include:
- 304
- 304L
- 316
- 316L
- 321
- 310S
- Duplex 2205
These grades provide excellent corrosion resistance and are widely used in chemical processing, food production, pharmaceuticals, and marine environments.
Alloy Steel Grades
For high-temperature and high-pressure applications, alloy steel grades such as:
- ASTM A335 P5
- ASTM A335 P9
- ASTM A335 P11
- ASTM A335 P22
- ASTM A335 P91
are commonly selected due to their superior heat resistance.
Steel Pipe Standards You Should Know
International standards ensure consistency in manufacturing quality and testing.
Below are some of the most widely used standards.
ASTM Standards
ASTM standards are widely adopted in North America.
Examples include:
- ASTM A53 — Welded and seamless carbon steel pipe
- ASTM A106 — Seamless carbon steel pipe for high-temperature service
- ASTM A312 — Stainless steel pipe
- ASTM A333 — Low-temperature carbon steel pipe
API Standards
The American Petroleum Institute (API) standards are primarily used in the oil and gas industry.
The most common standard is:
- API 5L
API 5L covers seamless and welded steel line pipes for transporting oil, gas, and water.
EN Standards
European standards include:
- EN 10219
- EN 10210
- EN 10216
- EN 10217
These standards are commonly used for structural engineering and pressure applications.
JIS Standards
Japanese Industrial Standards include:
- JIS G3454
- JIS G3455
- JIS G3456
- JIS G3461
These are widely accepted across Asian markets.
Manufacturing Methods
Steel pipes are manufactured using two primary processes.
Seamless Steel Pipe
Seamless pipes are produced from solid steel billets without welding.
Advantages include:
- Higher pressure resistance
- Better mechanical strength
- Excellent reliability
- Suitable for critical applications
Typical applications:
- Oil & gas
- Boilers
- Pressure vessels
- Power plants
Welded Steel Pipe
Welded pipes are manufactured by forming steel plates or coils into cylindrical shapes and welding the seam.
Types include:
- ERW (Electric Resistance Welded)
- LSAW (Longitudinal Submerged Arc Welded)
- SSAW (Spiral Submerged Arc Welded)
Advantages include:
- Lower production cost
- Larger diameter availability
- Faster production
- Suitable for structural applications
Steel Pipe Surface Treatments
Surface treatment improves corrosion resistance and service life.
Common options include:
Black Steel Pipe
No protective coating.
Suitable for:
- Structural applications
- Indoor use
- High-temperature service

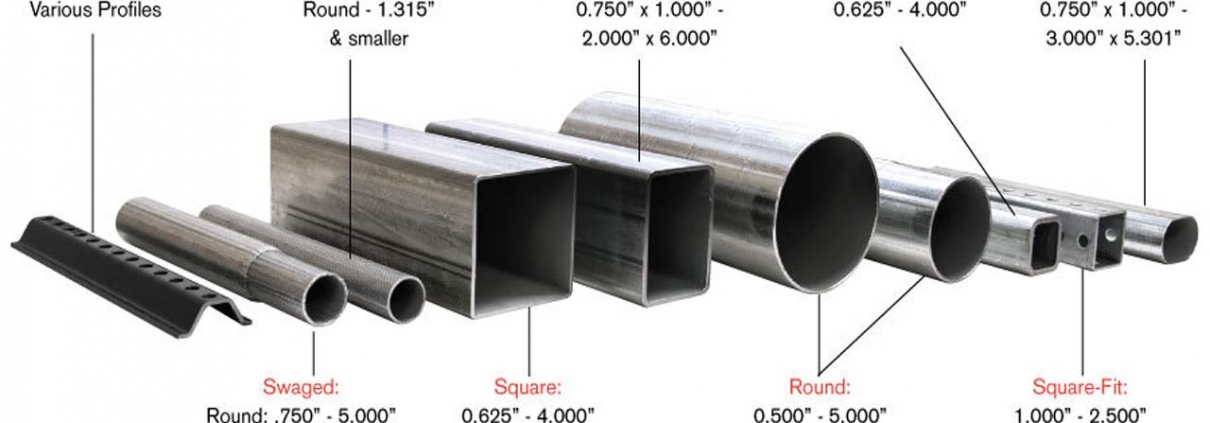

Galvanized Steel Pipe
Coated with zinc to prevent rust.
Applications include:
- Water supply
- Fence posts
- Agricultural systems
- Construction
Painted or Coated Pipes
Protective coatings include:
- Epoxy coating
- Fusion Bonded Epoxy (FBE)
- 3PE coating
- 3PP coating
- Coal tar epoxy
These coatings are widely used in buried pipelines and offshore projects.
Steel Pipe Applications
Different industries require different steel pipe specifications.
Construction
Steel pipes are used for:
- Structural columns
- Scaffolding
- Building frameworks
- Bridges
Oil and Gas Industry
Pipelines transport:
- Crude oil
- Natural gas
- Refined petroleum products
API 5L line pipes dominate this sector.
Water Transportation
Steel pipes are used for:
- Municipal water supply
- Wastewater treatment
- Irrigation systems
- Fire protection
Galvanized and coated pipes are preferred for corrosion resistance.
Manufacturing
Factories use steel pipes for:
- Machinery
- Hydraulic systems
- Conveyor equipment
- Industrial processing
Power Generation
Power plants require seamless alloy steel pipes for:
- Steam pipelines
- Boilers
- Heat exchangers
- High-pressure systems
How to Choose the Right Steel Pipe
Selecting the right steel pipe depends on several factors.
Consider the following before placing an order:
- Operating pressure
- Working temperature
- Corrosion environment
- Fluid type
- Installation method
- Applicable industry standards
- Required certifications
- Budget
For example:
| Application | Recommended Pipe |
|---|---|
| Oil Transmission | API 5L X52 Seamless Pipe |
| Building Structure | ASTM A53 ERW Pipe |
| High Temperature | ASTM A106 Grade B |
| Chemical Industry | Stainless Steel 316L |
| Water Supply | Hot-Dip Galvanized Steel Pipe |
Why Steel Pipe Specifications Matter
Using incorrect pipe specifications can lead to:
- Pipeline leakage
- Premature corrosion
- Structural failure
- Increased maintenance costs
- Safety hazards
Proper specification selection ensures:
- Longer service life
- Improved operational efficiency
- Regulatory compliance
- Lower lifecycle costs
Investing time in understanding steel pipe specifications helps avoid costly mistakes and ensures optimal project performance.
Conclusion
Understanding steel pipe specifications is the foundation of selecting the right piping solution. From pipe size and wall thickness to material grade, manufacturing standards, and application requirements, every specification plays a crucial role in determining performance and durability.
Whether you’re sourcing pipes for oil and gas, construction, water transmission, or industrial manufacturing, selecting products that meet recognized international standards such as ASTM, API, EN, or JIS will help ensure safety, reliability, and long-term value.
Before making your next purchase, always verify the pipe size, grade, standard, pressure rating, and intended application. Working with a trusted steel pipe manufacturer or supplier can further ensure you receive high-quality products tailored to your project’s specific requirements.
