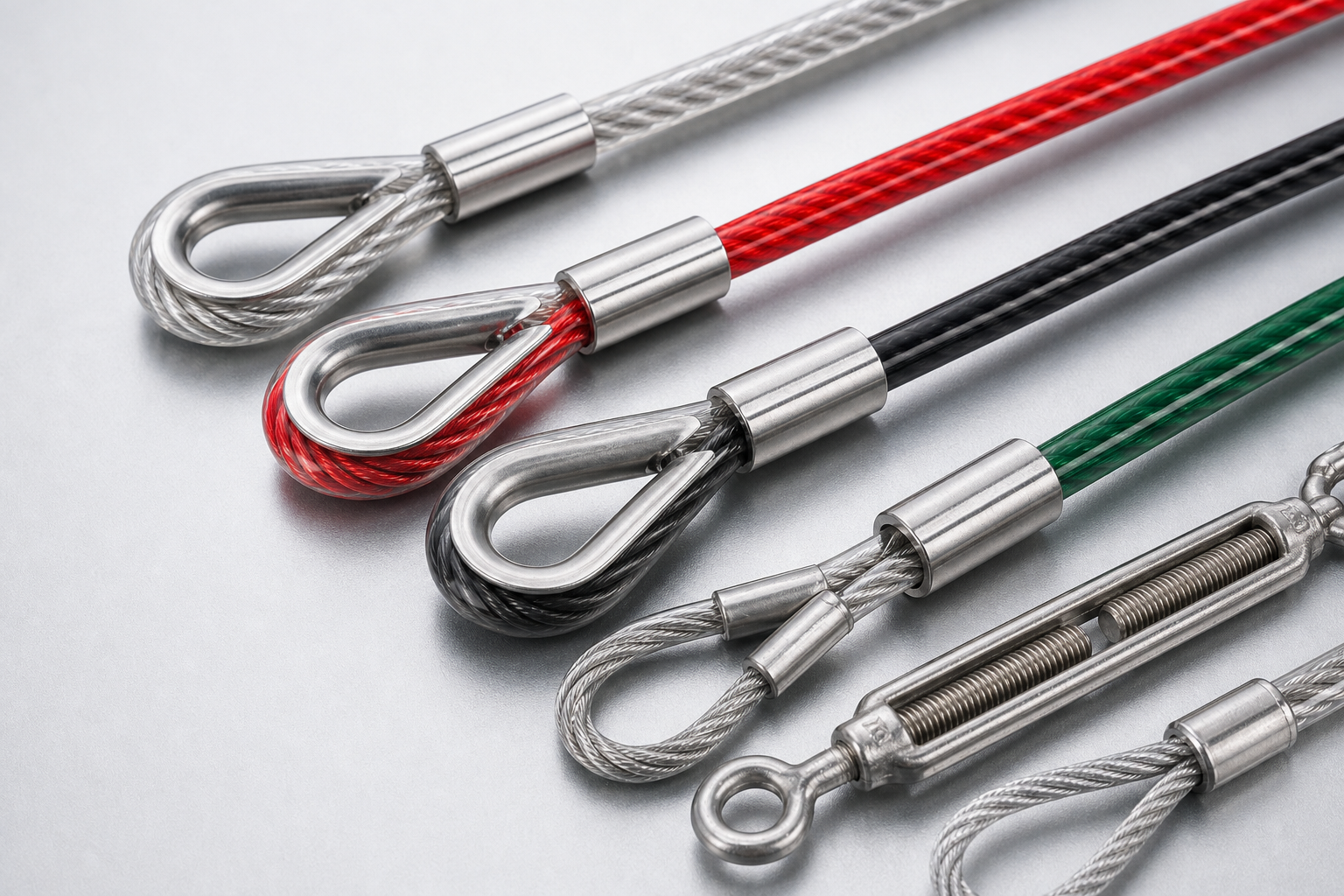

PVC & Nylon Coated Steel Wire Rope Cables (Colored Safety Rigging)
Sino East Steel Group manufactures heavy-duty PVC, Nylon, and PU Coated Steel Wire Rope Cables (7×7, 7×19). Combining the high tensile strength of galvanized or stainless steel core cables with a resilient synthetic jacket that prevents abrasion, eliminates scratching, resists UV sunlight degradation, and seals against moisture corrosion.
- Core Wire Materials: Hot-Dipped Galvanized Carbon Steel or Stainless Steel AISI 304/316
- Core Constructions: 7×7 (Standard), 7×19 (High Flexibility for Pulleys), 1×19 (Rigid)
- Coating Polymer: Transparent PVC, High-Wear Nylon 11/12, Polyurethane (PU), Polyethylene (PE)
- Color Options: Clear/Transparent, Matte Black, Signal Red, Safety Yellow, Sky Blue, Forest Green, White
- Size Range: Core Dia. 1.0mm – 8.0mm / Coated Outer Dia. 1.5mm – 12.0mm
- Temperature Resistance: -30°C to +85°C (PVC), -40°C to +110°C (Nylon 11)
1. PVC & Nylon Coated Wire Rope Dimensions & Breaking Load Table
| Core Dia. (mm) | Coated Outer Dia. (mm) | Core Construction | Total Weight (kg/100m) | Min. Breaking Load (kN) | Common Application |
|---|---|---|---|---|---|
| 1.5 mm | 2.0 mm / 2.5 mm | 7×7 | 1.25 kg | 1.45 kN | Display hanging, Security tags |
| 2.0 mm | 3.0 mm | 7×7 / 7×19 | 2.20 kg | 2.54 kN | Greenhouse trellis, Sign rigging |
| 3.0 mm | 4.0 mm / 5.0 mm | 7×19 | 4.80 kg | 5.72 kN | Gym fitness pulley cables |
| 4.0 mm | 5.0 mm / 6.0 mm | 7×19 | 8.20 kg | 10.15 kN | Heavy gym stations, Guardrails |
| 5.0 mm | 7.0 mm / 8.0 mm | 7×19 | 13.50 kg | 15.80 kN | Conveyor emergency pull cords |
| 6.0 mm | 8.0 mm / 10.0 mm | 7×19 | 19.20 kg | 22.80 kN | Marine lifelines, Barrier cables |
2. Industrial & Commercial Uses
- Fitness & Sports Equipment: Black/Clear Nylon coated 7×19 cables tested for > 200,000 bending cycles around small gym pulleys without jacket cracking.
- Conveyor Safety Stop Cables: Bright signal red/yellow coated ropes for emergency trip-wire switches along industrial belt conveyors.
- Marine & Architectural Railings: White/Clear PVC coated stainless steel cables for yacht perimeter lifelines and outdoor decking.
- Lighting & Luminaire Suspension: Sleek clear PVC cables for commercial LED high-bay and retail display hanging.
3. FAQ
What is the difference between PVC coating and Nylon coating?
PVC is cost-effective, weather-resistant, and flexible for general static outdoor use. Nylon is much harder, resists continuous friction and cyclic bending over pulleys, and is the industry benchmark for commercial gym machines.
Can you supply custom cut lengths with swaged ball and eye terminals?
Yes. We provide complete OEM cable assembly, including stainless steel ball shanks, threaded studs, loop thimbles, and snap hooks swaged directly onto coated or stripped cable ends.
